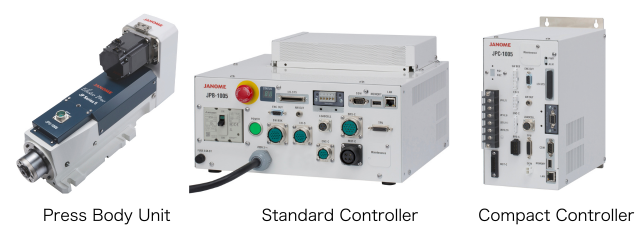

The JP5 Series Unit Type controllers are available in two options: the "Standard Controller" and the "Compact Controller", designed to suit various applications and installation environments. By understanding the unique features of each, you can make the right choice for your needs. In this article, we will explain the differences between the two and provide key points to consider when selecting the appropriate controller.

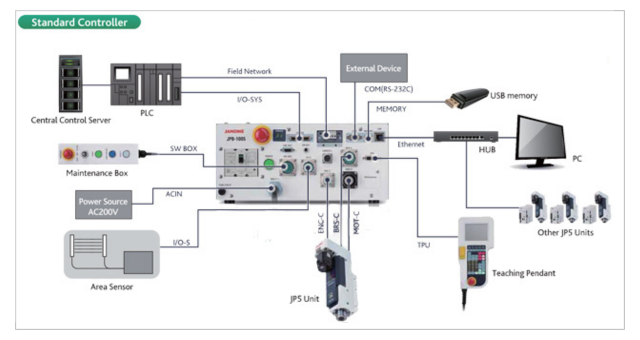

Features of the Standard Controller: All-in-One Design
The Standard Controller is characterized by its built-in safety circuit, allowing you to start using it immediately after wiring.
Since there is no need to prepare a separate safety circuit, installation work is significantly simplified.
Additionally, the built-in safety circuit (*) is designed to maximize the performance of the JP5 Series, ensuring highly reliable operation.
*The "safety circuit" is a mechanism that cuts off the motor drive power supply during an emergency stop to ensure a complete halt.
Due to these features, the Standard Controller is ideal for the following scenarios:
1. When introducing a servo press for the first time
2. When you want to simplify the installation process
3. When prioritizing safety
If you are considering creating a cell station, the Standard Controller eliminates the need for additional safety circuits, enabling smooth implementation. It is suitable for independent workstations or small-scale production lines, offering a cost-effective and safe solution.

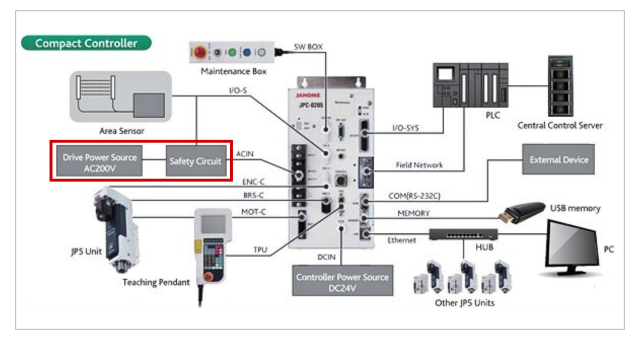

Features of the Compact Controller: High Flexibility for Integration into Existing Equipment Lines
On the other hand, the Compact Controller does not include a safety circuit, requiring users to design and build their own safety circuits. This specification allows for flexible customization to suit specific installation environments and applications.
For example, the Compact Controller is ideal when you want to utilize an existing safety circuit or design according to specific safety standards. Its compact design also makes it easy to use in environments with limited installation space.
How to Choose Between the Standard Controller and Compact Controller
When deciding between the Standard Controller and Compact Controller, consider the following points:
1. Reducing installation effort
The Standard Controller is recommended. Its built-in safety circuit allows you to start using it immediately after wiring.
2. Using it in a cell station
Standard Controller is suitable. With its built-in safety circuit, it reduces the time required for equipment setup.
3. Prioritizing customization
Compact Controller is ideal. By designing your own safety circuit, you can meet specific requirements.
4. Space constraints
Compact Controller's compact design is advantageous in environments with limited space.
5. Integrating into existing equipment
Compact Controller, with its space-saving design, is well-suited for integration into existing systems.
Conclusion: Choose the Right Option for Your Application
The Standard Controller and Compact Controller for the JP5 Series Unit Type each have distinct features. The Standard Controller, with its built-in safety circuit, is ideal for those who prioritize ease of use and safety. Meanwhile, the Compact Controller is better suited for cases requiring flexible design, space efficiency, or integration into existing equipment lines.
View the Full Lineup HereIf you are unsure which option to choose, clarify your installation environment and application to make an informed decision. We also offer consultation services for selecting the right JP5 Series controller, so please feel free to contact us for assistance.
