i22X Series
Desktop Robot i22X Series
Multifunctional Inspection Device
The JR3000 Series is equipped with a powerful visual inspection system to create a multifunctional inspection robot.
Features
Wide Range of Inspection Uses
Dip Soldering Inspection
Part・Color Difference
Scratch Inspection
Text Inspection
(Optical Character Recognition-optional add-on)
Missing Screw Check
Reads Various Barcodes
Traceability
Automatically saves inspection results & barcode information
Production Management Software "Catch System"*Optional (sold separately)

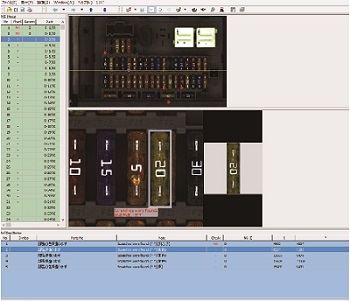

Check inspection images・Record repairs
(CS-Repair)

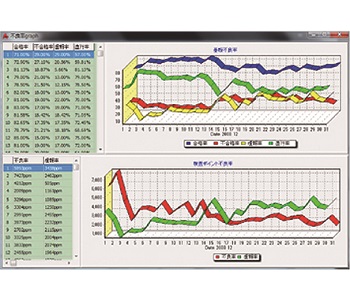

Keep tabs on productivity with monthly data graph
(CS-Analyzer)
Inspection Range Up to 500mm
“Free Space” Design Inspection Stage
Choose Lighting to Fit Your Application
White Lighting・DOAL・RGB Lighting ・Red Side Lighting・More

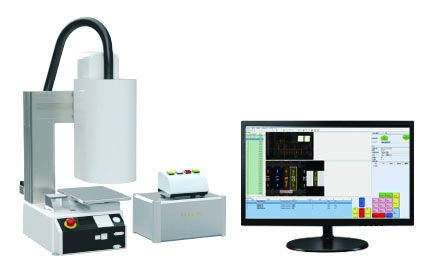

System Configuration
Inspection Unit・PC・Display・Controller・Switchbox
Product Lineup
*Scroll Horizontally
| i22X-200 | i22X-300 | i22X-500 | i22XDA-300＊1 | |
|---|---|---|---|---|
 |
 |
 |
 |
|
| External Dimensions | W420 D434 H696mm | W560 D587 H722mm | W678 D731 H822mm | W560 D587 H722mm |
| Device Weight | 26kg | 43kg | 53kg | 53kg |
| Applicable Workpiece Size | W200 D200 H80mm | W320 D300 H100mm | W510 D510 H150mm | W280 D250 H40mm |
| Maximum Portable Load | 5kg | |||
- ＊1 The i22X-DA300 is not CE declared for import to the European Economic Area.
- Manufactured by Marantz Electronics, Ltd.
- Specifications may be modified without prior notice to improve product quality.
