JP Series 5 Press Fitting with Sensor
The press inserts a metal bearing; wrong size bearings create load differences detected by the sensor.
Click hereServo Presses
Electric Servo Presses
Here are some of the benefits from using servo presses and a look at the JANOME Servo Press lineup.
Electric Servo Press Benefits
What Is a Servo Press?
A servo press is an advanced press machine powered by an AC servo motor, offering precise control over position, speed, and force. Unlike mechanical presses, manual presses, or hand presses, servo presses deliver superior energy efficiency, precision, and cleanroom compatibility. They are ideal for high-precision manufacturing and can outperform traditional hydraulic, pneumatic presses, and cylinders.
Wide variety of precision pressing control methods
Equipped with an AC servomotor and internal load cell, for position-based and load-based control with modifiable press fitting speed control, servo presses offer work-oriented operational flexibility.
Conserves energy and improves the work environment
Not only do servo presses run more quietly and cleanly for both operator and workpiece, but servo presses also consume only about 10~20% of the electricity used by conventional air and oil presses.
Comprehensive traceability data
With a servo press, the built-in AC servomotor and internal load cell provide not only pressing result data, but can display and store position and load value data as a waveform graph.
Servo Press Application Examples
- Press Fitting
- Caulking
- Riveting
- Sealing
- Bending
- Drawing
- Compressing
- Forming
- Cutting
- Punching
- Engraving
- Testing
JANOME Electric Servo Press Benefits
Convenient Teaching Pendant for easy operation
Setting programs is simple with our interactive teaching method.
＊Switch among these Teaching Pendant display languages.
JP5: English, Japanese, German, French, Spanish, Italian, Czech, Hungarian, Romanian, Chinese (Simplified and Traditional), Korean, Vietnamese.
JP-S2 (Pendant Unit): English, Japanese, Simplified Chinese, Korean.
PC software for convenient traceability & quality control
With our dedicated PC software, quickly collect and process detailed position and load time series data, save important quality control data such as sensor results in files for traceability and improved quality.
Designer
Sets Pressing & Sensor Conditions
Set program parameters while referring to test run waveform graphic data.
Sampler
Acquires Result Data
View the result data for 4 presses on one screen.
Reporter
Analyzes Result Data
Analyze shot-by-shot comparative data and CPK data, etc.

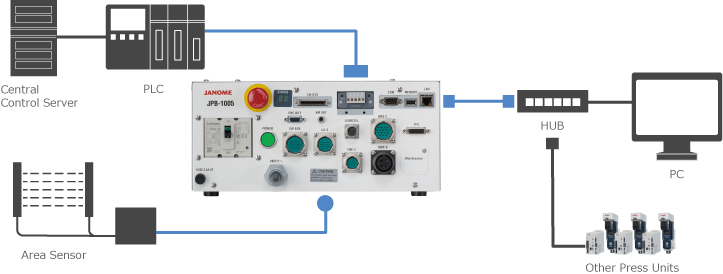

Comprehensive device interfacing with dedicated signals
Servo presses equipped with various dedicated signals for easy connectivity with peripheral devices.
・Ethernet LAN port included as standard equipment
・Field Network compatibility (optional)

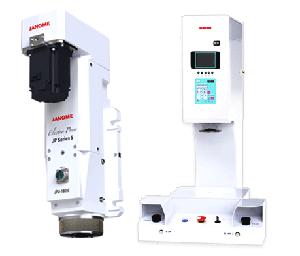

Compatible with clean room environments
The JP Series 5 servo press is available with clean room specifications. Clean room models are used where fine particle control is required, such as the medical, semiconductor, and electronic component manufacturing industries.
Low dust generation enables high-precision pressing even in ISO Class 4* clean environments.
*Clean class is based on ISO4644-1.
Product Lineup
*Scroll Horizontally

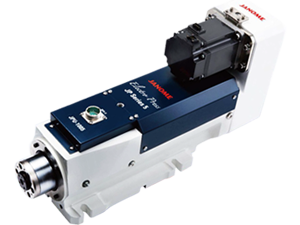

JP Series 5
|
JP Series 5 Stand-Alone Type Two Hand Switch Model
|
JP Series 5 Stand-Alone Type Flexible Model
|

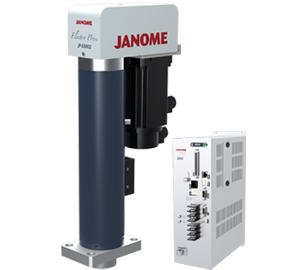

JP-S2 Series
|
JP5S Series
|
||
| Product Page | Product Page | Product Page | Product Page | Product Page | ||
| Clean Room | Clean Room Model | Clean Room Model | Clean Room Model | - | - | |
| Product Features | Integrated servo press features high speed and high precision. | Ready-to-run C-frame servo press. | Suitable for both inline and cell installation. | Slim and compact “Inline Specialist” servo press. | Hybrid type servo press based on the JP5 and the JP-S2. | |
| Maximum Load | 0.5kN | ○ | ○ | ○ | - | - |
| 1kN | ○ | ○ | ○ | - | - | |
| 2kN | ○ | ○ | ○ | - | - | |
| 5kN | ○ | ○ | ○ | ○ | - | |
| 10kN | ○ | ○ | ○ | ○ | - | |
| 15kN | ○ | ○ | ○ | ○ | - | |
| 20kN | ○ | ○ | ○ | ○ | - | |
| 30kN | ○ | ○ | ○ | ○ | - | |
| 50kN | ○ | ○ | ○ | ○ | - | |
| 80kN | ○ | - | - | ○ | - | |
| 100kN | - | - | - | ○ | - | |
| 120kN | ○ | - | - | - | - | |
| 200kN | - | - | - | ○ | - | |
| 300kN | - | - | - | - | ○ | |
| CE Declared | ○ | ○ | - | ○ | - | |
Servo Press Application Examples
Press Fitting Demonstration
In this animated video, the servo press simulates a press fitting operation.
Click here
Caulking Demonstration
In this animated video, the servo press simulates caulking operation.
Click here
Please Ask About Special Specifications
Do you need a customized design?
We offer several variations to meet specific size and configuration requirements.
Test and Try
Test your process on our machines. Please contact us for more information.
