JP Series 5

Servo Press JP Series 5
Stand-Alone Type (Two Hand Switch Model)

Ready-to-run C-frame servo press.
Comprehensive two hand switch-operated pressing system.

Features

Built-in Safety Features

With no need for a light curtain or area sensor, not only are additional costs avoided but both operator safety and a broad work area are achievable.

All-in-One System Ideal for Cell Production

Designed especially for cell production and research facilities, result display, control mechanism, pressing mechanism, C-frame and pair of operation switches are all included in one machine. Just power the press and you are ready to begin.

Multilingual Display Screen

Switch among 13 different languages: English / Japanese / Simplified and Traditional Chinese / Korean / Vietnamese / German / French / Spanish / Italian / Romanian / Czech / Hungarian

Touch Panel Interface For Servo Press

View and analyze process parameters and graphs; comprehensive press control at your fingertips.

Touch Panel Interface
For more information, please visit our Catalog & Diagram Download Page or contact us directly.

PC Software: TaS Ⅱ System

Compatible with desktop, laptop and HMI (touch panel) PCs; choose the PC setup suitable for your facility.

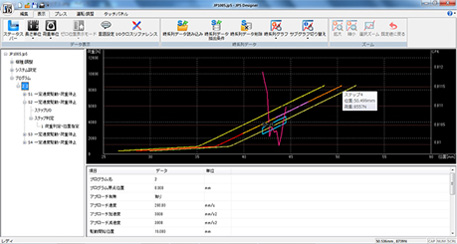

JP5 Designer
Create, edit, send and receive teaching data

Upload teaching data from the Electro Press to your PC.
Create and edit teaching data and send it to the Electro Press.
Save teaching data on your PC and print it out.
Acquire time series data via JP5 Sampler and display it as a graph.
Edit sensor conditions, etc. based upon graphic displays.
Real time I/O monitoring during press operation.

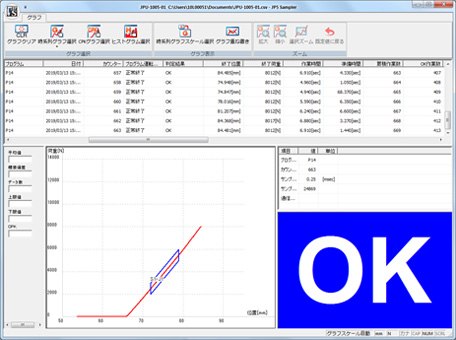

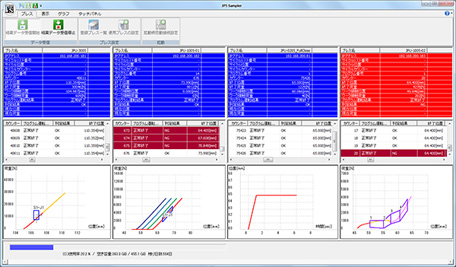

JP5 Sampler (optional)
Receive and save run result data

Upload run result data to your PC (minimum sampling interval 0.25msec).
Display quality control data in list display format, and time series data as a graph.
Output sampling data in CSV/TXT file format.
Collect run result data from multiple presses.

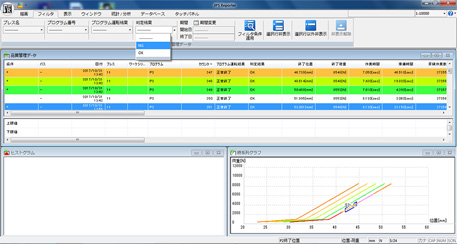

JP5 Reporter (optional)
Analyze run results and make reports

Use quality control data to calculate and display statistical averages and standard deviations.
Display the frequency distribution (histograms) for end load values and end positions.
Display CPK (process capability index) data based upon run result data.
Display operational status program by program.
(Error rate, no. of OK/NOK, average cycle time, average
prep time, etc.)
Make reports in HTML format.
