Servo Press JP Series 5
Stand-Alone Type (Flexible Model)

Suitable for Both Inline and Cell Installation

Inline: easily install the C-frame press by itself to save space
Cell: connect the Switchbox for a manually operated all-in-one pressing system

Ethernet-based Traceability (loT)

DExport high-speed sampling data to a PC via the Ethernet.
0.25msec position and load value sampling interval is the fastest in the industry.

Multilingual Display Screen

Switch among 13 different languages: English / Japanese / Simplified and Traditional Chinese / Korean / Vietnamese / German / French / Spanish / Italian / Romanian / Czech / Hungarian

Touch Panel Interface For Servo Press

View and analyze process parameters and graphs; comprehensive press control at your fingertips.

For more information, please visit our Catalog & Diagram Download Page or contact us directly.

Compatible with desktop, laptop and HMI (touch panel) PCs; choose the PC setup suitable for your facility.

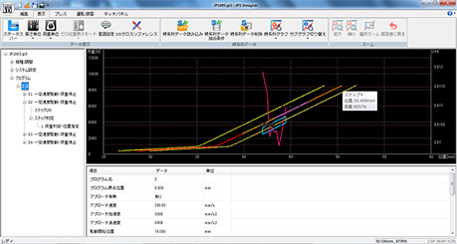

JP5 Designer
Create, edit, send and receive teaching data

• Upload teaching data from the Electro Press to your PC.
• Create and edit teaching data and send it to the Electro Press.
• Save teaching data on your PC and print it out.
• Acquire time series data via JP5 Sampler and display it as a graph.
• Edit sensor conditions, etc. based upon graphic displays.
• Real time I/O monitoring during press operation.

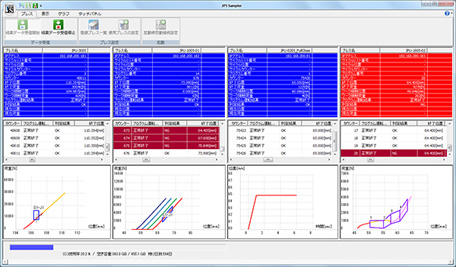

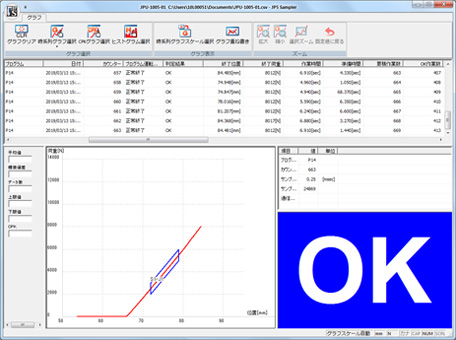

JP5 Sampler (optional)
Receive and save run result data

• Upload run result data to your PC (minimum sampling interval 0.25msec).
• Display quality control data in list display format, and time series data as a graph.
• Output sampling data in CSV/TXT file format.
• Collect run result data from multiple presses.

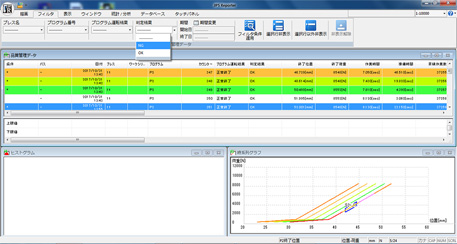

JP5 Reporter (optional)
Analyze run results and make reports

• Use quality control data to calculate and display statistical averages and standard deviations.
• Display the frequency distribution (histograms) for end load values and end positions.
• Display CPK (process capability index) data based upon run result data.
• Display operational status program by program.
  (Error rate, no. of OK/NOK, average cycle time, average
  prep time, etc.)
• Make reports in HTML format.
