JP5S Series

Servo Press JP5S Series

Hybrid Type Servo Press based on the JP5 and the JP-S2 (Made-to-Order Product)

Features

Compact and Fast

Hybrid model combines the strengths of the JP5 and the JP-S2.
Offers the ｍost compact size and fastest ram speed in the industry for a 300kN press.
Double the ram speed and 6.7 times the acceleration compared with our JPS20T2 200kN model.

Ideal for Pneumatic and Hydraulic Press Replacement

Greatly reduces electrical consumption and CO2 emissions compared to pneumatic and hydraulic presses.
Low vibration, low noise, and oil-free operation for a cleaner work environmment.

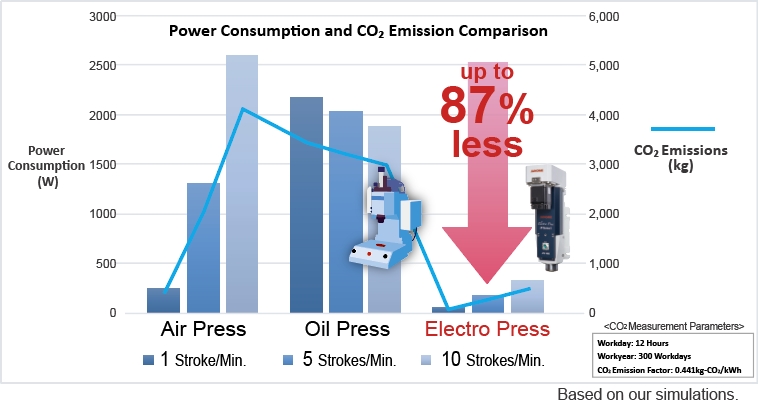

Power Consumption and CO2 Emission Comparison

Easy Installation

Ethernet port included as standard equipment
Choose from 7 different Field Network types
Low noise and clean work environment
Much lower running cost compared with oil and air presses
Easy program teaching

Various pressing functions and plenty of sensor functions

Combines pressing conditions (speed, load) with stopping conditions (position, load, distance, time, etc.) for a wide range of pressing modes.
Abundant sensor functions prevent the flow of faulty products to the next production process.

Traceability (IoT)

Transfer data acquired through high-speed sampling and sensor result data to a USB memory, or with an Ethernet connection, to an external device such as a PC.
・ Position・Load Sampling Interval: 0.25msec

Global Diagnostic Functionality

Comprehensive hardware diagnostics (including PC boards)
Its easy to switch among display languages; teach in one language and edit or run your program in another!

Touch Panel Interface For Servo Press

View and analyze process parameters and graphs; comprehensive press control at your fingertips.

Touch Panel Interface
For more information, please visit our Catalog & Diagram Download Page or contact us directly.

PC Software: TaS Ⅱ System

Compatible with desktop, laptop and HMI (touch panel) PCs; choose the PC setup suitable for your facility.

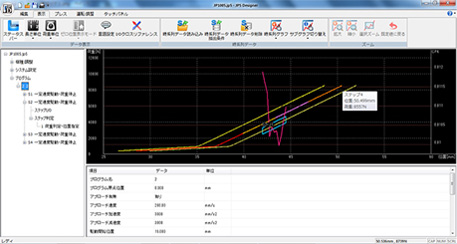

JP5 Designer
Create, edit, send and receive teaching data

Upload teaching data from the Electro Press to your PC.
Create and edit teaching data and send it to the Electro Press.
Save teaching data on your PC and print it out.
Acquire time series data via JP5 Sampler and display it as a graph.
Edit sensor conditions, etc. based upon graphic displays.
Real time I/O monitoring during press operation.

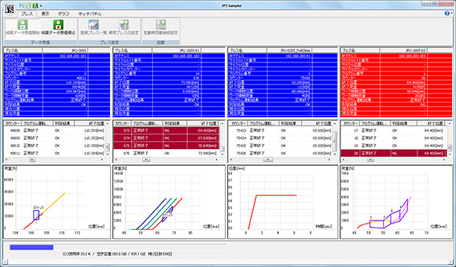

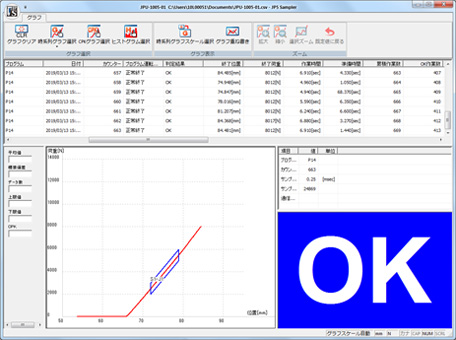

JP5 Sampler (optional)
Receive and save run result data

Upload run result data to your PC (minimum sampling interval 0.25msec).
Display quality control data in list display format, and time series data as a graph.
Output sampling data in CSV/TXT file format.
Collect run result data from multiple presses.

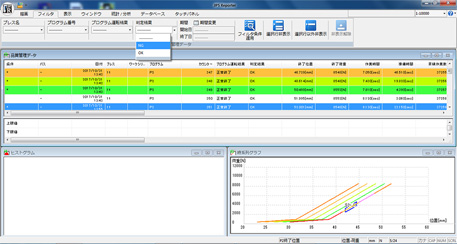

JP5 Reporter (optional)
Analyze run results and make reports

Use quality control data to calculate and display statistical averages and standard deviations.
Display the frequency distribution (histograms) for end load values and end positions.
Display CPK (process capability index) data based upon run result data.
Display operational status program by program.
(Error rate, no. of OK/NOK, average cycle time, average
prep time, etc.)
Make reports in HTML format.
