JP5S Series

Servo Press JP5S Series

Hybrid Type Servo Press based on the JP5 and the JP-S2 (Made-to-Order Product)

Main Specifications

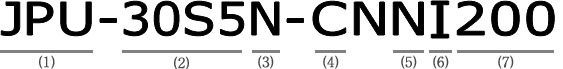

How to Read the Model Code

Example

*Scroll Horizontally

（1） Type	（2） Maximum Load	（3） Specs	（4） Controller	（6） Pulley Box Direction	（6） Model Type	（8） Stroke
JPU	30S5: 300kN	N: Standard	C: Compact	N: Standard	I: Incremental	200: 200mm

Specifications

*Scroll Horizontally

		JPU-30S5
Maximum Pressing Capacity(kN)		300
Ram Stroke (mm)		200
Rated Load (Continuous Pressurization Holding Force) (kN)		150
Maximum Speed (mm/sec)*1		100
Holding Time at Maximum Load (s)*2		20
Load Display Accuracy*3		±3kN at 30kN or more
Position Repeatability (mm)*4		±0.01
Press Unit	Dimensions WxDxH(mm) *5	280x591x984
Press Unit	Weight (kg)	485
Compact Controller	Dimensions WxDxH(mm) *5	200x255x292
Compact Controller	Weight (kg)	8.5
Regenerative Resistor Box	Dimensions WxDxH(mm) *5	90x342x492
Regenerative Resistor Box	Weight (kg)	8.9
Encoder		Incremental Type
Display Units		Load unit: N, kgf, Lb　　Length unit: mm, inch
Display Languages	PC Software	English, Japanese, Korean, Simplified Chinese, Traditional Chinese, German
Display Languages	Teaching Pendant	English, Japanese, Korean, Simplified Chinese, Traditional Chinese, Vietnamese, German, French, Spanish, Italian, Romanian, Czech, Hungarian
Drive and Control Method		AC servomotor drive 32 bit CPU (dual core)
External Input/Output	COM	RS-232C 1ch
	I/O-SYS	17 Inputs / 16 Outputs (Please choose NPN or PNP specifications when you place your order.)
	LAN	Ethernet:10BASE-T/100BASE-TX
	MEMORY Port	For USB Memory Connection Backup model setting data and teaching data Save result data Upgrade system software
	Field Network (optional)	CC-Link, DeviceNet, PROFIBUS, CANopen, PROFINET, EtherNet/IP, EtherCAT Choose your preferred Field Network when you place your order.
Power Supply Voltage	Drive Power Supply	Three Phase AC200～240V　±10%
Power Supply Voltage	Control Power Supply	DC24V ±5%
Work Environment	Surrounding Temperature	0～40℃ (without condensation)
Work Environment	Relative Humidity	20～90％ (without condensation)
Ingress Protection Rating		Press Unit: IP40 Controller: IP20

＊1 Maximum speed may vary depending upon conditions.
＊2 Value when making a cold start; may change depending upon press settings.
＊3 Load display precision is ±1%(FS) of the maximum pressing capacity when pressing in the range of 10% or more of the maximum capacity.
＊4 Position repeatability is not a guarantee of absolute position precision.
＊5 Excluding cables and protrusions.
