JP Series 5 Press Fitting with Sensor
The press inserts a metal bearing; wrong size bearings create load differences detected by the sensor.
Click hereJP-S2 Series
Servo Press JP-S2 Series
Slim and Compact "Inline Specialist" Servo Press.
Lineup includes a lightweight 80kN model ideal for riveting applications.

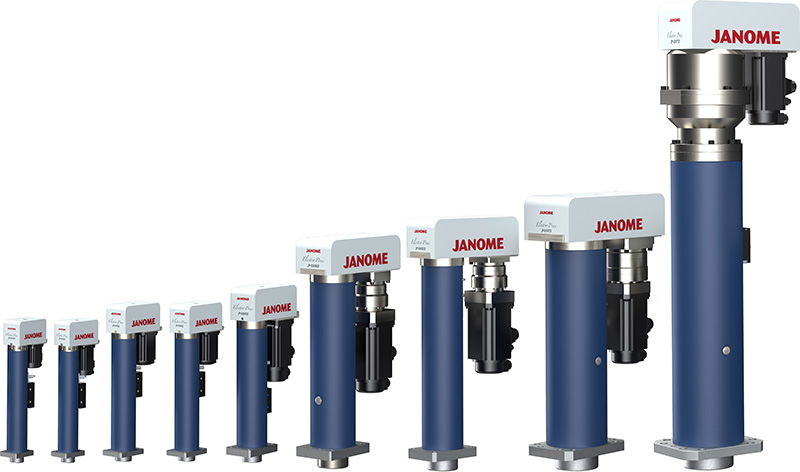

Product Lineup
*Scroll Horizontally
| JP-S0502 (5kN) |
JP-S1002 (10kN) |
JP-S1502 (15kN) |
JP-S2002 (20kN) |
JP-S3002 (30kN) |
JP-S5002 (50kN) |
JP-S8002 (80kN) |
JP-S10T2 (100kN) |
JP-S20T2 (200kN) |
|
|---|---|---|---|---|---|---|---|---|---|
| Ram Stroke(mm) | 100 150 250 350 |
100 150 250 |
100 200 300 350 400 450 |
100 150 200 300 350 400 |
100 200 300 350 400 |
100 200 300 350 400 |
200 | 200 400 |
200 400 |
How to Read the Model Code
Example
*Scroll Horizontally
| （1） Device Type |
（2） Max. Load |
（3） Specifications |
（4） Variations |
（5） Stroke＊2 |
（6） Brake |
（7） Load Cell |
（8） DIO |
|---|---|---|---|---|---|---|---|
| JP-S: Main Unit JP-SC: Controller |
0502: 5kN 1002: 10kN 1502: 15kN 2002: 20kN 3002: 30kN 5002: 50kN 8002: 80kN 10T2: 100kN 20T2: 200kN |
0: Standard 1: CE |
0: Standard 1: Long Holding＊1 |
100: 100mm 150: 150mm 200: 200mm 250: 250mm 300: 300mm 350: 350mm 400: 400mm 450: 450mm |
B：Included 0: None |
S: Pressing 0: None |
N: NPN P: PNP 0: None |
| （9） Field Network |
（10） Regenerative Resistance |
（11） Press Unit Cable ＊3 |
（12） Power Cable |
（13） Power Source Specs |
|||
|---|---|---|---|---|---|---|---|
| EP: EtherNet/IP PN: PROFINET CC: CC-Link DE: DeviceNet PR: PROFIBUS CO: CANopen 00: None |
B: Built-in A: External Add-on |
3: 3m 5: 5m A: 10m B: 15m C: 20m D: 5mR E: 10mR F: 15mR 0: None |
3: 3m 5: 5m A: 10m 0: None |
1: Single Phase＊4 3: Three Phase |
- ＊1 Long Holding: Equipped with a motor one size larger. JP-S1002/2002, JP-S3002（CE models only）
- ＊2 Compatible strokes vary by model. Please refer to the lineup chart above.
- ＊3 ○mR are flexible cables. Flexible cables and cables 10m and longer are not CE compatible.
- ＊4 JP-S2002 and smaller models only.
Sample Applications
Press Fitting Demonstration
In this animated video, the servo press simulates a press fitting operation.
Click here
Caulking Demonstration
In this animated video, the servo press simulates a caulking operation.
Click here
Please Ask About Special Specifications
Do you need a customized design?
We offer several variations to meet specific size and configuration requirements.
Test and Try
Test your process on our machines. Please contact us for more information.
